The Maths of 3D

You can't have 3D without a little maths...



Collision Detection

by bkenwright@xbdev.net



Putting together various demo programs that show how you would go about testing for intersection tests with various common shapes, and how to determine the intersection point.  You usually determine if a collision has occured, then using the intersection point, determine how to react to the collision, as in games if a ball hit a wall you would want to know the hit point to you would work out where the ball would bounce back from :)

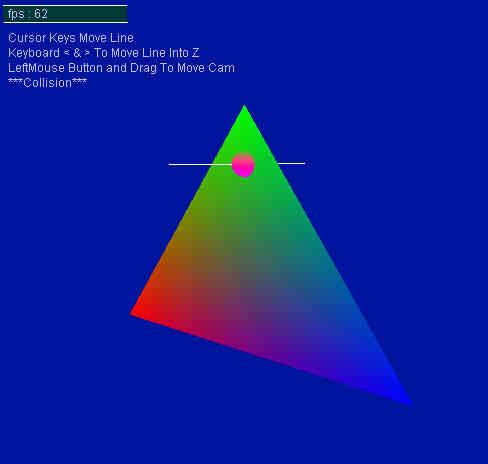

Triangle Ray Collision Intersection Demo



Triangle Line Collision Intersection Demo



Download Source Code

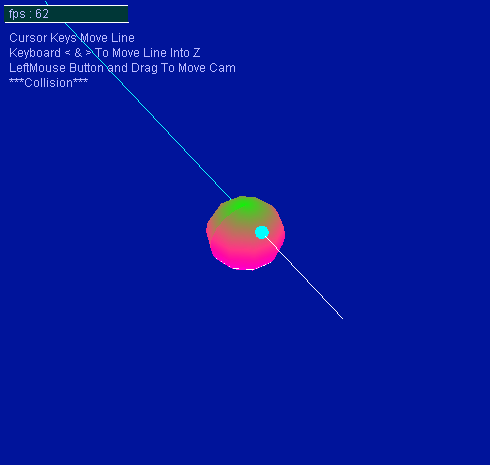

Sphere Ray Collision Intersection Demo



Sphere Ray Collision Intersection Demo



Download Source Code

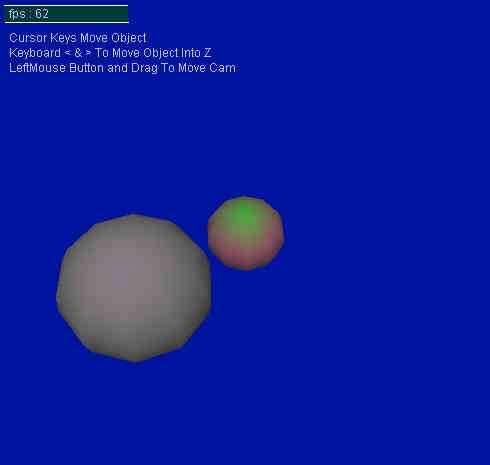

Sphere - Sphere Collision Detection Demo



Sphere - Sphere Collision Detection Demo



Download Source Code

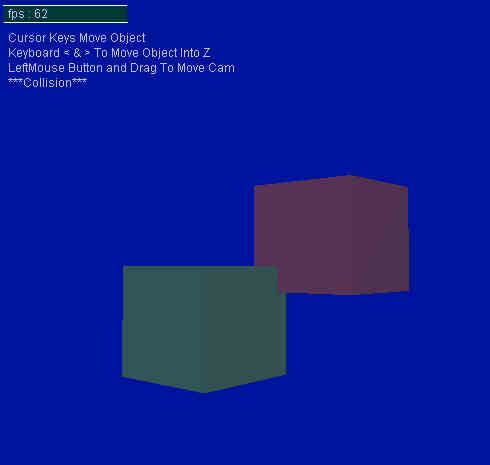

AABB - AABB Collision Detection Demo



AABB - AABB Collision Detection Demo



Download Source Code

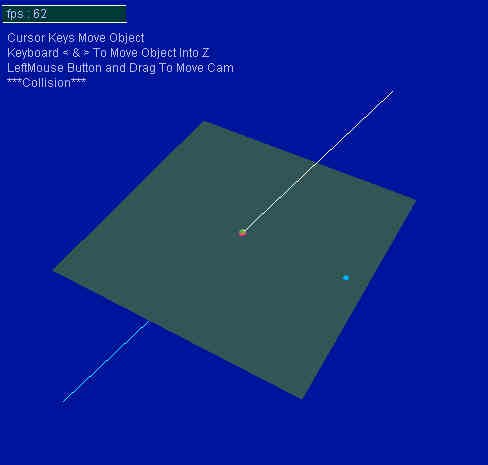

Ray-Plane Intersection Demo



Ray-Plane Intersection Demo



Download Source Code

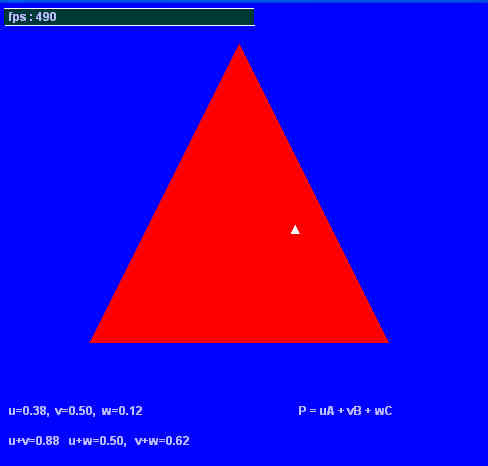

BaryCentric Coordinates



BaryCentric Coordinates is a way of representing a set of weighted values for each point.  The concept is used in numerous tests not just our triangle/point demo.



P = uA + vB + wC



P is our point, A,B,C our triangle and of course u,v,w are our Barycentric coordinates.



where u+v+w=1



The point is inside the triangle only if 0<= u,v,w <= 1,  or alternatively, if and only if 0<=v<=1.0f and 0<=w<=1 and  v+w<=1



Not that I say v+w<=1, as u=1-w-v



Which leads us to rearranging for what u is, and gives us:



P = A + v(B-A) + w(C-A) = (1-v-w)A + vB + wC



And we can solve for v and w.



Download Demo (Source + Executable)







Quick View of the Various Intersection / Collision Detection Algorithms Source





Useful DirectX Librarys

  • D3DXPlaneIntersectLine(..) - return the point on the plane or NULL if parallel
