Making our graphics card work for us..


Shader Effect (.fx) Files

by bkenwright@xbdev.net

Basics of Effect File (.fx) Programming

FX files, short for effects files, play a crucial role in computer graphics and game development, particularly in the context of Microsoft's DirectX technology. These files contain HLSL (High-Level Shading Language) code, which defines the rendering effects applied to 3D models and scenes. HLSL is a shader language used to program the GPU for handling tasks like vertex and pixel processing.

FX files encapsulate shader code along with parameters and techniques, providing a streamlined way for developers to manage and apply complex graphical effects, such as lighting, shadows, and post-processing, within their applications.

You encapsulate these shaders in FX files, so you can easily load, compile, and link shaders as a cohesive unit, simplifying the integration of sophisticated visual effects into your graphics pipelines.

Tutorial 1: Using DirectX and Effect Files

Tutorial 2: X Files and Effect Files (DirectX)

• Tutorial 3: Using OpenGL and FX

• Tutorial 4: Adding More Pizzazz

Effect Demos with Source

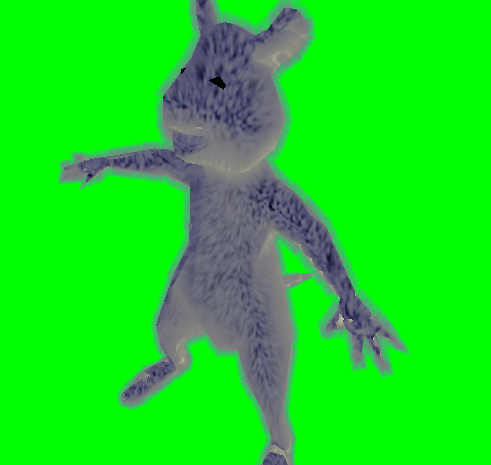

Demo: Basic Fur Effect Fx (ps1.1 vs1.1)

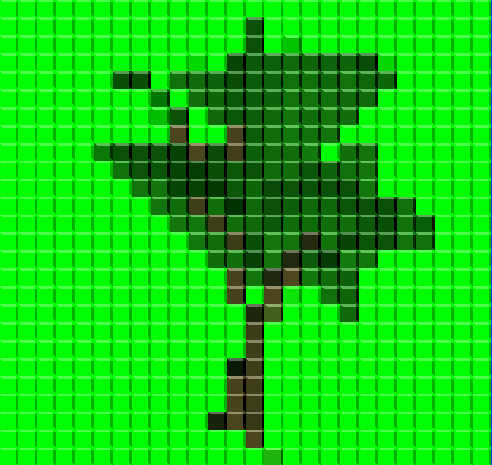

Tiling Mosaic tiling.fx (ps2.0, vs1.1)

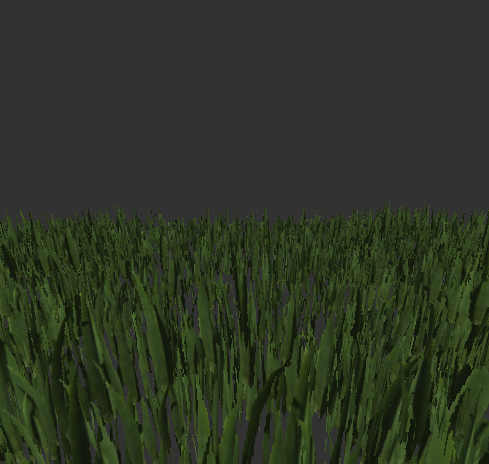

Waving Grass FX (ps1.1, vs1.1)

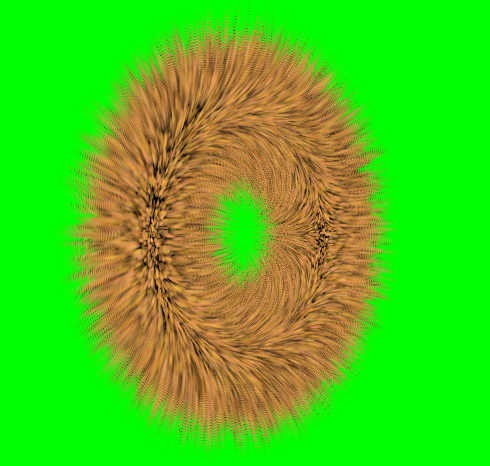

Torus Fur (ps1.1 vs1.1)

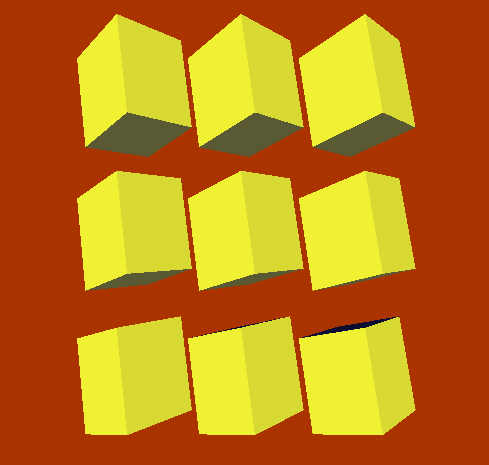

Simple Lighting (Cubes) Fx (ps1.3 vs1.1)
Linear Interpolation (lerp)(ps1.3 vs1.1)

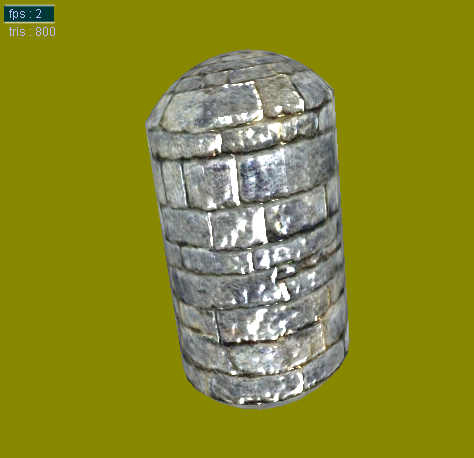

Normal Mapping (ps2.0 vs1.1)

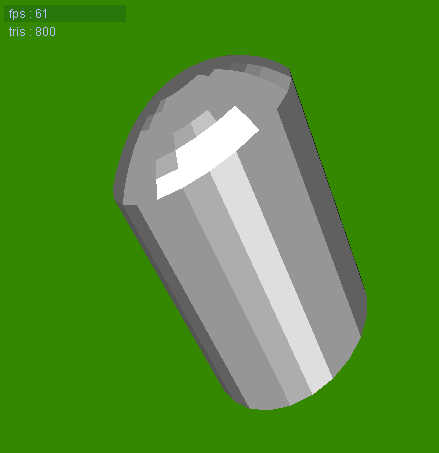

Toon Shading (Cell-Shading) (ps1.1 vs1.4)

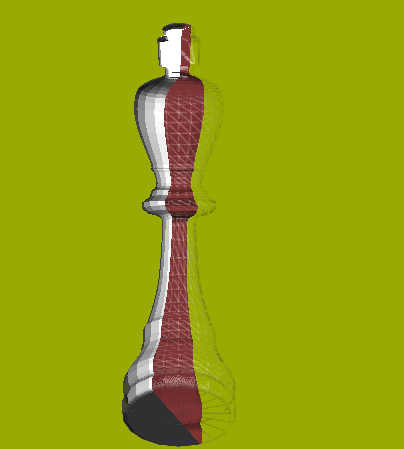

Slicing an Object (Plane Equation) (ps2.0 vs1.4)

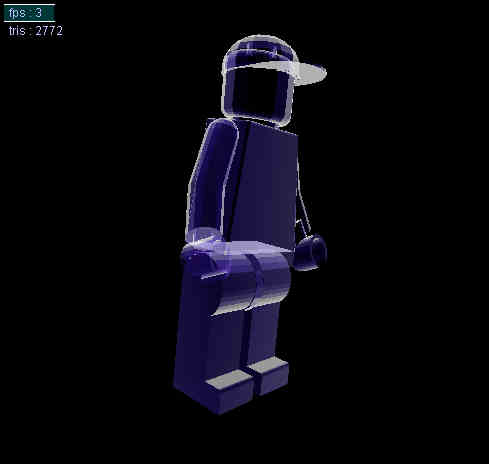

Simple Hologram Effect (ps1.4 vs1.1)
Ground Plane Shadow (ps1.4 vs1.1)
