GeoJSON File Format

Spatial Geographic Data Structures ...



GeoJSON Format (3D Data)


The GeoJSON format is a json file which contains geographic informtion (e.g., lines, points and so on) and their properties and spatial extents.

Example of what the inside of a GeoJSON file looks like:

{

"type""Feature",

"geometry": {

"type""Point",

"coordinates": [125.610.1]
  },

"properties": {

"name""Dinagat Islands"

}
}


The great thing is - because the GeoJSON file is a `json` file - it means it acn be parsed easily using the builtin JavaScript json functions (e.g.,
JSON.parse(..)
).


Interactive Map

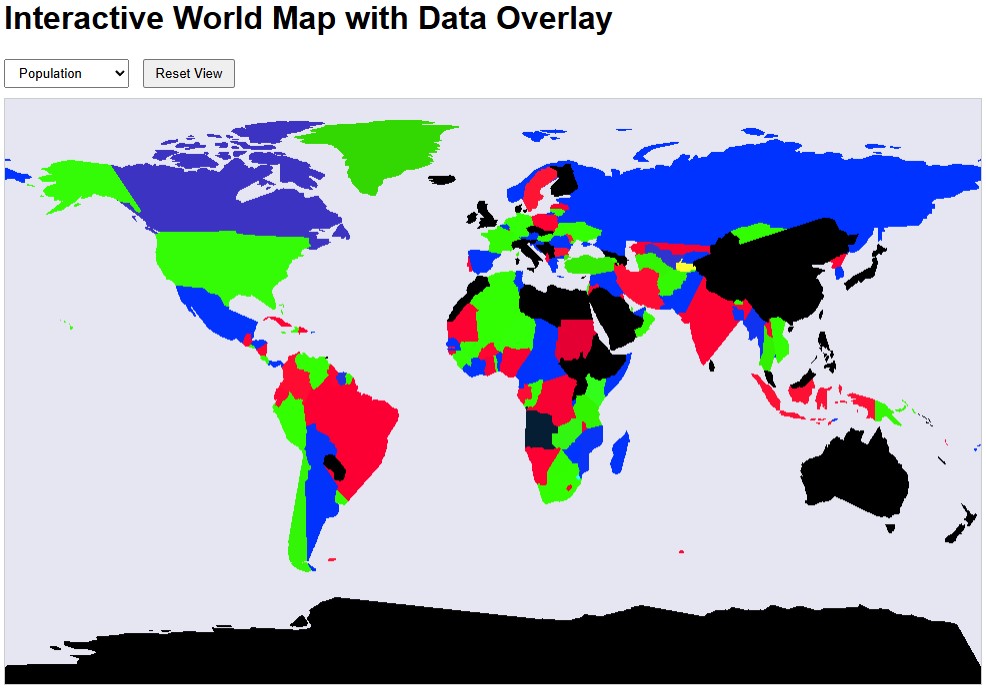

Example of using the GeoJSON data to create an interactive map (viewing world data).


Example loading and using the GeoJSON data to create a 3d interactive visualization.
Example loading and using the GeoJSON data to create a 3d interactive visualization.


Looking Inside


We can start of by loading a GeoJSON file (one of the basic world map resource) - after loading - we'll parse the data then loop over and dump the name of all the top level objects:

// Load GeoJSON data (using a simplified world map)
const response await fetch('https://raw.githubusercontent.com/nvkelso/natural-earth-vector/master/geojson/ne_110m_admin_0_countries.geojson');
const
geoDataRaw await response.text();
const
geoData JSON.parsegeoDataRaw );

console.log('size file:'geoDataRaw.length );

for (
o in geoData
{

console.log);
}


The output written to the console is this:

log:["size file:",815562]
log:["type"]
log:["name"]
log:["crs"]
log:["features"]
log:["bbox"]


If we look at the official specification, we can get information for what these objects are:

• "type" (Standard GeoJSON Property) Indicates the type of GeoJSON object (e.g., feature collection, point, ...)
• "name" - metadata field for information (e.g., name of the file)
• "crs" (Coordinate Reference System, Optional in GeoJSON) - defines the spatial reference system (e.g., "EPSG:4326" for WGS84). Modern GeoJSON defaults to WGS84 (longitude/latitude), so "crs" is often omitted.
• "features" (Standard in FeatureCollection) - An array of GeoJSON Feature objects (each containing a geometry and properties). This is only present if "type": "FeatureCollection".

We can do a bit better and modify the code so it prints out the contents of each objects. We modify the loop:

for (o in geoData
{

console.log' : ' geoData] );
}


This outputs:

log:["size file:",815562]
log:["type : FeatureCollection"]
log:["name : ne_110m_admin_0_countries"]
log:["crs : [object Object]"]
log:["features : [object Object],[object Object],[object Object],........ .... ..."]
log:["bbox : -180,-90,180,83.64513"]


The `features` object contains 117 objects (
console.log( geoData[ 'features' ].length )
). We show this as '...'.

If we look at the first
feature
object - and dump the object names, we get:

for ( o in geoData'features' ][ ] )
{

console.log'  ' )
}


The output:

log:["  type"]
log:["  properties"]
log:["  bbox"]
log:["  geometry"]


As you can see we can have objects of objects (nested information).

If we print out the contents for these object as we did with the parent, we get:

for ( o in geoData'features' ][ ] )
{

console.log'  ' +  ' : ' geoData'features' ][ ][o] )
}


Get the output:

log:["  type : Feature"]
log:["  properties : [object Object]"]
log:["  bbox : -180,-18.28799,180,-16.020882"]
log:["  geometry : [object Object]"]


The geometry object is the data for the positions (shape). Let's take a look at what's inside a geometry object:

console.loggeoData'features' ][ ][ 'geometry'] )


The output is shown below:

log:[{"type":"MultiPolygon","coordinates":[[[[180,-16.067133],[180,-16.555217],[179.364143,-16.801354],[178.725059,-17.012042],[178.596839,-16.63915],[179.096609,-16.433984],[179.413509,-16.379054],[180,-16.067133]]],[[[178.12557,-17.50481],[178.3736,-17.33992],[178.71806,-17.62846],[178.55271,-18.15059],[177.93266,-18.28799],[177.38146,-18.16432],[177.28504,-17.72465],[177.67087,-17.38114],[178.12557,-17.50481]]],[[[-179.79332,-16.020882],[-179.917369,-16.501783],[-180,-16.555217],[-180,-16.067133],[-179.79332,-16.020882]]]]}]


All geometry objects must have a type and a coordinates array.

• "type": Specifies the geometry type (e.g., "Point", "LineString", "Polygon", "MultiPolygon", etc.).

• "coordinates": An array defining the vertices of the geometry. The structure varies by type.


As you can see - our example is a MultiPolygon - which represents multiple distinct polygons (e.g., islands, disjoint regions). Its coordinates are a 3D array structured as:

{

"type""MultiPolygon",

"coordinates": [
    [
/* Polygon 1 */ ],
    [
/* Polygon 2 */ ],
    [
/* ... */ ]
  ]
}

Each Polygon follows these rules:

• The first ring is the exterior boundary.
• Subsequent rings (if any) are holes inside the exterior.
• Each ring must be closed (first and last points are identical).

Now we can write a simple canvas to draw the polygon data. If it's a
MultiPolygon
we only draw the first Polygon for the exterior boundary. If it's just a
Polygon
we just draw it. The data inside a Polygon is just an array of points which we can conenct together using a line drawing function.

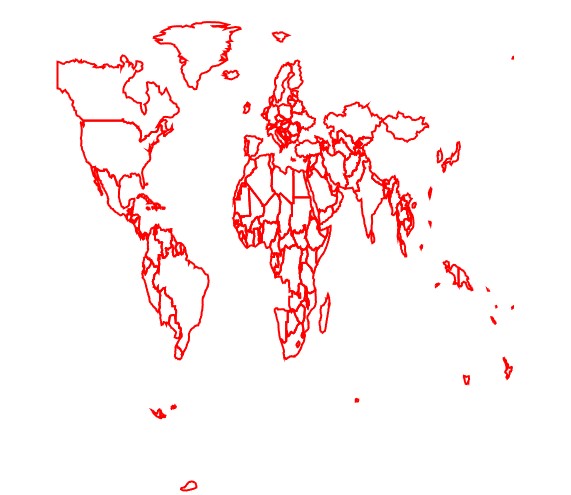

Draw a line for the polygon object points - connect together the points.
Draw a line for the polygon object points - connect together the points.


We also need to create a
project
function which converts geographic coordinates (longitude and latitude) into canvas pixel coordinates so they can be drawn on an HTML5
<canvas>
.

// Set up canvas
let canvas document.createElement('canvas');
canvas.width canvas.height 512;
document.body.appendChild(canvas);
const
ctx canvas.getContext('2d');

// Normalize coordinates to fit canvas
function project(lonlat) {

// Mercator-like projection (simplified)

const = (lon 180) * (canvas.width 360);
  const
= (90 lat) * (canvas.height 180);
  return {
x};
}

// Draw the exterior ring of the first polygon
function drawPolygonExteriorpolygon ) {

ctx.beginPath();


// Start from the first point

const start project(polygon[0][0], polygon[0][1]);

ctx.moveTo(start.xstart.y);


// Draw lines to subsequent points

for (let i 1polygon.lengthi++) {
    const [
lonlat] = polygon[i];
    const {
x} = project(lonlat);

ctx.lineTo(xy);
  }


// Style

ctx.strokeStyle '#FF0000';

ctx.lineWidth 2;

ctx.stroke();

ctx.closePath();
}

for (
let i=0i<geoData'features' ].lengthi++)
{

let geometryobject geoData'features' ][ ][ 'geometry' ];


console.log('geometryobject.type:'geometryobject.type );
    if (
geometryobject.type == 'MultiPolygon' )
    {
        const
polygon geometryobject.coordinates[0][0]; // First polygon's exterior ring

drawPolygonExteriorpolygon );
    }
    if (
geometryobject.type == 'Polygon' )
    {

drawPolygonExteriorgeometryobject.coordinates[0] );
    }
}


We're drawing the geometric data as lines - if we want to draw the polygons as solid shapes - we need to trianglulate the shape. As the shape is not convex this can be a bit more complex (do more than a convex hull wrapping algorithm).

Loading Data (Triangles)


The following gives you a working eample of loading in the map data from a geojson file (parsing and converting it into triangles) which can be rendered using WebGL or WebGPU.

// Load GeoJSON data (using a simplified world map)
const response await fetch('https://raw.githubusercontent.com/nvkelso/natural-earth-vector/master/geojson/ne_110m_admin_0_countries.geojson');
const
geoData await response.json();

// Process GeoJSON into triangle data
const positions = []; // flattened array of triangle vertices
const countryIds = []; // country index per vertex
const countryInfo = []; // metadata for each country

let countryIndex 0;
for (const
feature of geoData.features) {
    const
properties feature.properties;


// Store country info

countryInfo.push({

nameproperties.NAME || properties.NAME_LONG || 'Unnamed',

isoproperties.ISO_A2 || '',

populationproperties.POP_EST || 0,

gdpproperties.GDP_MD_EST || 0

});


// Handle different geometry types

const geometry feature.geometry;
    if (
geometry.type === 'Polygon') {

processPolygon(geometry.coordinatescountryIndex);
    } else if (
geometry.type === 'MultiPolygon') {
        for (const
polygon of geometry.coordinates) {

processPolygon(polygoncountryIndex);
        }
    }


countryIndex++;
}

// Helper function to process a single polygon (with possible holes)
function processPolygon(coordinatescountryIdx) {

// The first ring is the exterior, others are holes

const exteriorRing coordinates[0];


// Convert polygon to triangles using ear clipping algorithm

const triangles earClip(exteriorRing);


// Add the triangles to our buffers

for (const triangle of triangles) {
        for (const [
xyof triangle) {

positions.push(xy);

countryIds.push(countryIdx);
        }
    }


// TODO: Handle holes - would need to clip them from the exterior
}

// Simple ear-clipping triangulation for convex polygons
function earClip(polygon) {
    const
triangles = [];
    const
vertices polygon.slice();


// Remove duplicate last point if it exists

if (vertices.length &&

vertices[0][0] === vertices[vertices.length-1][0] &&

vertices[0][1] === vertices[vertices.length-1][1]) {

vertices.pop();
    }


// For convex polygons, we can just fan triangulate

if (vertices.length >= 3) {
        for (
let i 1vertices.length 1i++) {

triangles.push([

vertices[0],

vertices[i],

vertices[1]
            ]);
        }
    }

    return
triangles;
}

console.log({ positionscountryIdscountryInfo });






Resource & Links


GeoJSON Specification Details

* Interactive World Map
