OBJ 3D File Formats

The bits and bytes...

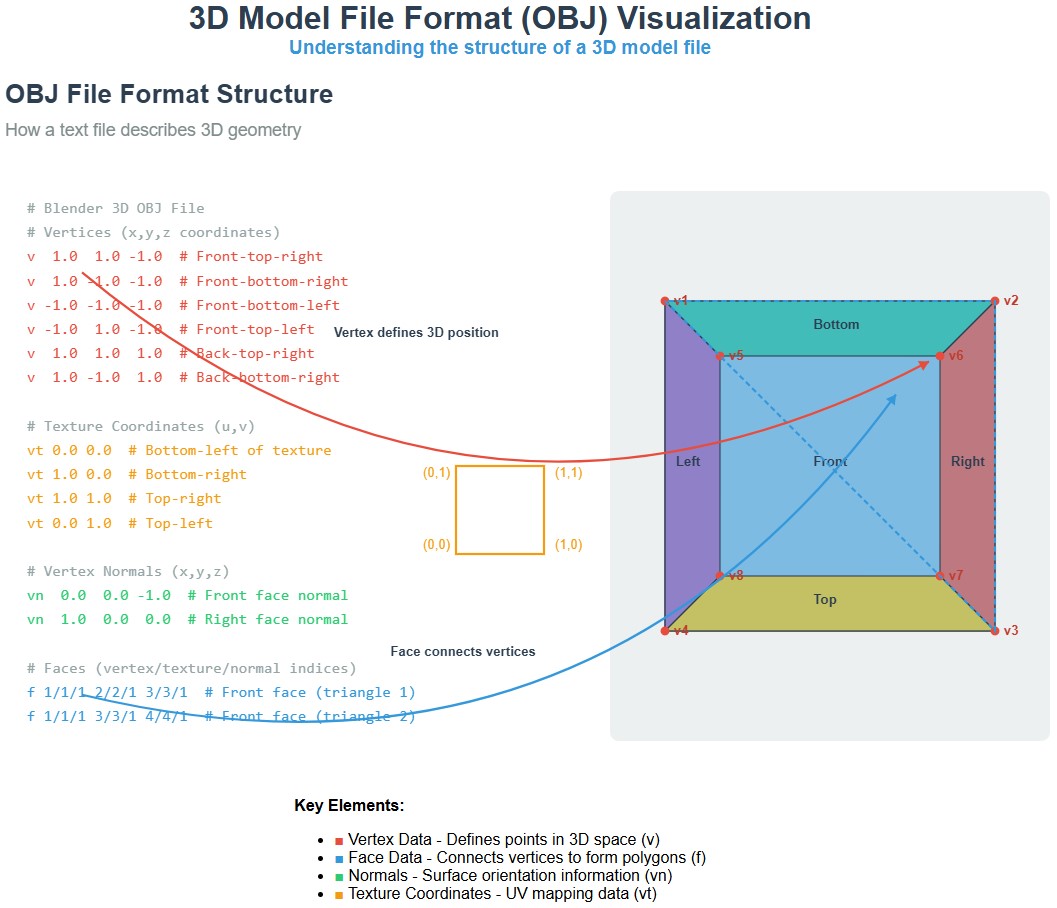

Visualization of the obj file format - minimal working code on left and the model on the right.
Visualization of the obj file format - minimal working code on left and the model on the right.


OBJ File Format (.obj)


The `obj` file format is a text based format.

Example of what the file format looks like in a text editor (triangle only)

triangle.obj
# Equilateral Triangle OBJ File
mtllib triangle.mtl
o Triangle

# Vertices (y=0 for flat triangle)
v -0.5 0 -0.288675  # Left vertex
v  0.5 0 -0.288675  # Right vertex
v  0.0 0  0.577350  # Top vertex

# Texture Coordinates (UV mapping)
vt 0.0 0.0  # Bottom-left
vt 1.0 0.0  # Bottom-right
vt 0.5 1.0  # Top-center

# Normals (facing up)
vn 0 1 0

# Material
usemtl DefaultMaterial

# Face (counter-clockwise winding)
f 1/1/1 2/2/1 3/3/1


The material information can be include inline in the obj - or included in an additional file with the '.mtl' extension. (This file is referenced in the obj using the
mtllib
tag):

triangle.mtl
# Material for the triangle
newmtl DefaultMaterial
Ka 1.0 1.0 1.0    # Ambient color (white)
Kd 0.8 0.2 0.2    # Diffuse color (red)
Ks 0.5 0.5 0.5    # Specular highlights
Ns 32             # Shininess (0-1000)
illum 2           # Phong shading




Example obj file loader (in Javascript)


The following `obj` file loader is in a single file. Also converts non-triangle (quad) mesh elements to triangles.

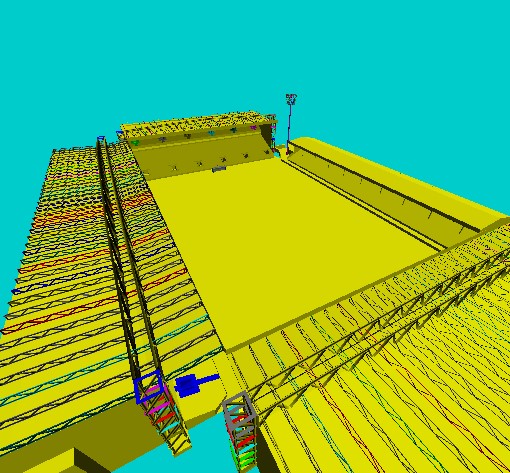

Output for the example OBJ Loader - loads in a 3d model of a Stadium
Output for the example OBJ Loader - loads in a 3d model of a Stadium


readObj = function(txt)
{
    console.log('readObj...');

    let objects = [];

    let materials = [];
    objects.push( { 'name':'test', 'v':[], 'vt':[], 'vn':[], 'f':[], 'usemtl':'' } );
    let data = { 'v':[], 'n':[], 'f':[], 'm':[] };

    txt = txt.replaceAll('  ', ' ');
    let lines = txt.split('\n');
    console.log('num lines:', lines.length );

    let curmat = -1;

    for (let i=0; i<lines.length; i++)
    {
        let line = lines[i];
        line = line.trim()
        if ( line.length < 2 ) continue;
        if ( line[0] == '#'  ) continue;

        let parts = line.split(' ');
        if ( parts.length < 1 ) continue;

        try{
        switch( parts[0] )
        {
              case 'usemtl':
            {
               let matname = parts[1];
               if ( !materials.includes( matname ) )
               {
                 materials.push( matname );
               }
               curmat = materials.indexOf( matname );
               //console.log( 'curmat:', curmat );
            }
            break;

            case 'v': // v 0.089624 1.419387 0.052847
            {
                objects.reverse()[0].v.push( parts[1] );
                objects.reverse()[0].v.push( parts[2] );
                objects.reverse()[0].v.push( parts[3] );
            }
            break;

            case 'vt': // vt 0.818181 0.000000
            {
                objects.reverse()[0].vt.push( parts[1] );
                objects.reverse()[0].vt.push( parts[2] );
            }
            break;

            case 'vn': // vn 0.5499 0.7413 0.3847
            {
                objects.reverse()[0].vn.push( parts[1] );
                objects.reverse()[0].vn.push( parts[2] );
                objects.reverse()[0].vn.push( parts[3] );
            }
            break;

            case 'f': // f 1/1/1 14/2/1 13/3/1
            {
                // f v1/vt1/vn1 v2/vt2/vn2 v3/vt3/vn3 ...
                // f v1//vn1 v2//vn2 v3//vn3 ... (double slashes)



/*
If you have 4 indices, e.g.:

0 1 2 3
The division into two triangles would be one with the first 3 indices, and one with the first, third, and fourth. In this example:

0 1 2
0 2 3
Let's try some ASCII art to illustrate this:

3-------2
|      /|
|    /  |
|  /    |
|/      |
0-------1
*/

                let i0 = parts[1].split('/')[0]-1;
                let i1 = parts[2].split('/')[0]-1;
                let i2 = parts[3].split('/')[0]-1;
                let i3 = parts.length ==4 ? undefined : (parts[4].split('/')[0]-1);

                let n0 = parts[1].split('/')[2]-1;
                let n1 = parts[2].split('/')[2]-1;
                let n2 = parts[3].split('/')[2]-1;
                let n3 = parts.length ==4 ? undefined : (parts[4].split('/')[2]-1);

                if ( parts[1].includes('//') )
                {
                    n0 = parts[1].split('//')[1]-1;
                    n1 = parts[2].split('//')[1]-1;
                    n2 = parts[3].split('//')[1]-1;
                    n3 = parts.length == 4 ? undefined : (parts[4].split('//')[1]-1);
                }

                if ( i3 == undefined ) // triangles
                {
                    let v = []
                    for (let g=0; g<3; g++)
                    {
                    let idx = [i0,i1,i2][g];
                    let x0 = objects.reverse()[0].v[  (3* idx)+0   ];
                    let y0 = objects.reverse()[0].v[  (3* idx)+1   ];
                    let z0 = objects.reverse()[0].v[  (3* idx)+2   ];
                    v.push( { x:x0, y:y0, z:z0 } );
                    }
                    data.v.push( v[0].x );  data.v.push( v[0].y ); data.v.push( v[0].z );
                    data.v.push( v[1].x );  data.v.push( v[1].y ); data.v.push( v[1].z );
                    data.v.push( v[2].x );  data.v.push( v[2].y ); data.v.push( v[2].z );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );

                      let n = [];
                    for (let g=0; g<[n0,n1,n2].length; g++)
                    {
                    let nx0 = objects.reverse()[0].vn[  3*[n0,n1,n2][g]+0   ];
                    let ny0 = objects.reverse()[0].vn[  3*[n0,n1,n2][g]+1   ];
                    let nz0 = objects.reverse()[0].vn[  3*[n0,n1,n2][g]+2   ];
                    n.push( { x:nx0, y:ny0, z:nz0 } );
                    }
                    data.n.push( n[0].x );  data.n.push( n[0].y ); data.n.push( n[0].z );
                    data.n.push( n[1].x );  data.n.push( n[1].y ); data.n.push( n[1].z );
                    data.n.push( n[2].x );  data.n.push( n[2].y ); data.n.push( n[2].z );
                }
                else // quads
                {

                    let v = [];
                    for (let g=0; g<4; g++)
                    {
                    let idx = [i0,i1,i2,i3][g];
                    let x0 = objects.reverse()[0].v[  (3* idx)+0   ];
                    let y0 = objects.reverse()[0].v[  (3* idx)+1   ];
                    let z0 = objects.reverse()[0].v[  (3* idx)+2   ];
                    v.push( { x:x0, y:y0, z:z0 } );
                    }
                    data.v.push( v[0].x );  data.v.push( v[0].y ); data.v.push( v[0].z );
                    data.v.push( v[1].x );  data.v.push( v[1].y ); data.v.push( v[1].z );
                    data.v.push( v[2].x );  data.v.push( v[2].y ); data.v.push( v[2].z );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );

                    data.v.push( v[0].x );  data.v.push( v[0].y ); data.v.push( v[0].z );
                    data.v.push( v[2].x );  data.v.push( v[2].y ); data.v.push( v[2].z );
                    data.v.push( v[3].x );  data.v.push( v[3].y ); data.v.push( v[3].z );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.m.push( curmat );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );
                    data.f.push( data.f.length );

                    let n = [];
                    for (let g=0; g<4; g++)
                    {
                    let idx = [n0,n1,n2,n3][g];
                    let nx0 = objects.reverse()[0].vn[  (3* idx)+0   ];
                    let ny0 = objects.reverse()[0].vn[  (3* idx)+1   ];
                    let nz0 = objects.reverse()[0].vn[  (3* idx)+2   ];
                    n.push( { x:nx0, y:ny0, z:nz0 } );
                    }
                    data.n.push( n[0].x );  data.n.push( n[0].y ); data.n.push( n[0].z );
                    data.n.push( n[1].x );  data.n.push( n[1].y ); data.n.push( n[1].z );
                    data.n.push( n[2].x );  data.n.push( n[2].y ); data.n.push( n[2].z );

                    data.n.push( n[0].x );  data.n.push( n[0].y ); data.n.push( n[0].z );
                    data.n.push( n[2].x );  data.n.push( n[2].y ); data.n.push( n[2].z );
                    data.n.push( n[3].x );  data.n.push( n[3].y ); data.n.push( n[3].z );

                }
            }
            break;

      }// end switch(..)

      }catch(e){ }

    }// for

    console.log( 'dump:', data.m.slice(0, 20) );

    return [ data ];
}// readObj(..)



Resources and Examples


• WebGPU Example [LINK]

• Notebook `obj` to `json` Example [https://notebook.xbdev.net/index.php?page=objtojson&]

• Visualization using JS/Canvas (WebBook Lab) [LINK]
